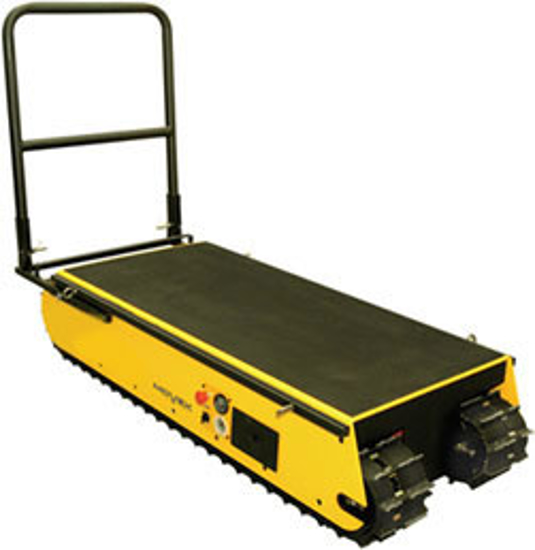

Twin Track 66 Terrain Mover


Part No: EW-TT66

Twin Track 66 Terrain Mover
*
Call for pricing

Twin Track 66 Terrain Mover

Description / Technical Details
FrameSteel
CabinetAluminium
Length66 in1676 mm
Width29.25 in749 mm
Height13.5 in343 mm
Weight (with front handle)820 lbs372 Kg
Weight of Backrest20 lbs9 Kg
Ground Clearance2.5 in63.5 mm
Load bearing capacity (inclined)1100 lbs500 Kg
Load bearing capacity (flat)2200 lbs1000 Kg
Maximum inclination40°
Linear speed44 ft/min13,4 m/min
Power
Motor(2) Industrial
Horse Power (HP)1 HP (x2)
Gearbox100:1 (x2)
Power Features
Battery included2
Integrated AC-DC Battery Charger1
Battery Amperage85 Amps (x2)
Operating voltage24 VDC
Continuous Run-Time*3 hours approx. (without load, flat surface)
