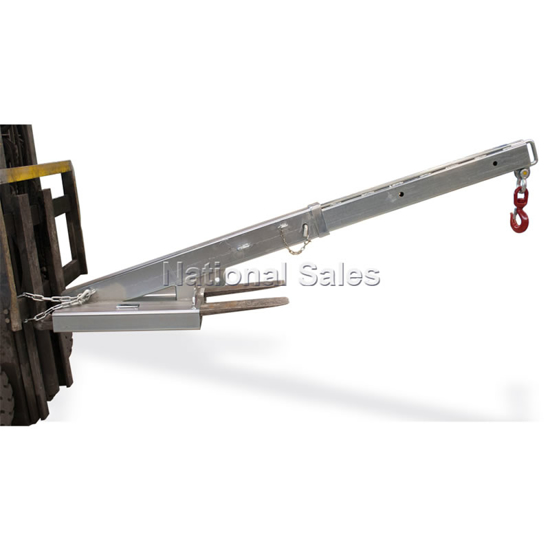

Budget Tilt Jib 4700kg

Part No: EW-TJB47

The Budget Tilt Jib 4700kg are a valuable addition to any workshop. Available in three models rated at 3500kg, 4700kg and 7500kg Working Load Limit (WLL), they provide optimum safety for the forklift operator and assistants during any 'lift by hook' application.
$1,410.00 excl GST

The compact closed length of the jib allows for greater lifting capability and manouevrability while extending up to 2500mm in length gives extra versatility when required. The tilt angle of the boom increases the jibs capability while a safety chain securely attaches unit to the forklift.

Removal of the locking pin allows the jib to be extended giving a choice of four different lifting positions. A safety swivel hook is fitted as standard.

Zinc finish for durability. Certified to relevant Australian Standards and supplied with instruction manual, certification and risk assessment.

Products specifications
SWL (kg)4700kg Max
Load Centre (mm)790
Pocket Size (mm)185 x 65
Pocket Centres (mm)350
Horizontal Centre of Gravity (mm)600
Vertical Centre of Gravity (mm)120
Unit Weight (Kg)140kg

We have a full range of forklift jib attachments available so call us if you cant see what you are looking for
